Robotic
rebar tying.
Designed to accelerate horizontal rebar tying and reduce labour costs on large concrete projects. The robot secures bar intersections with wire.
Robotic

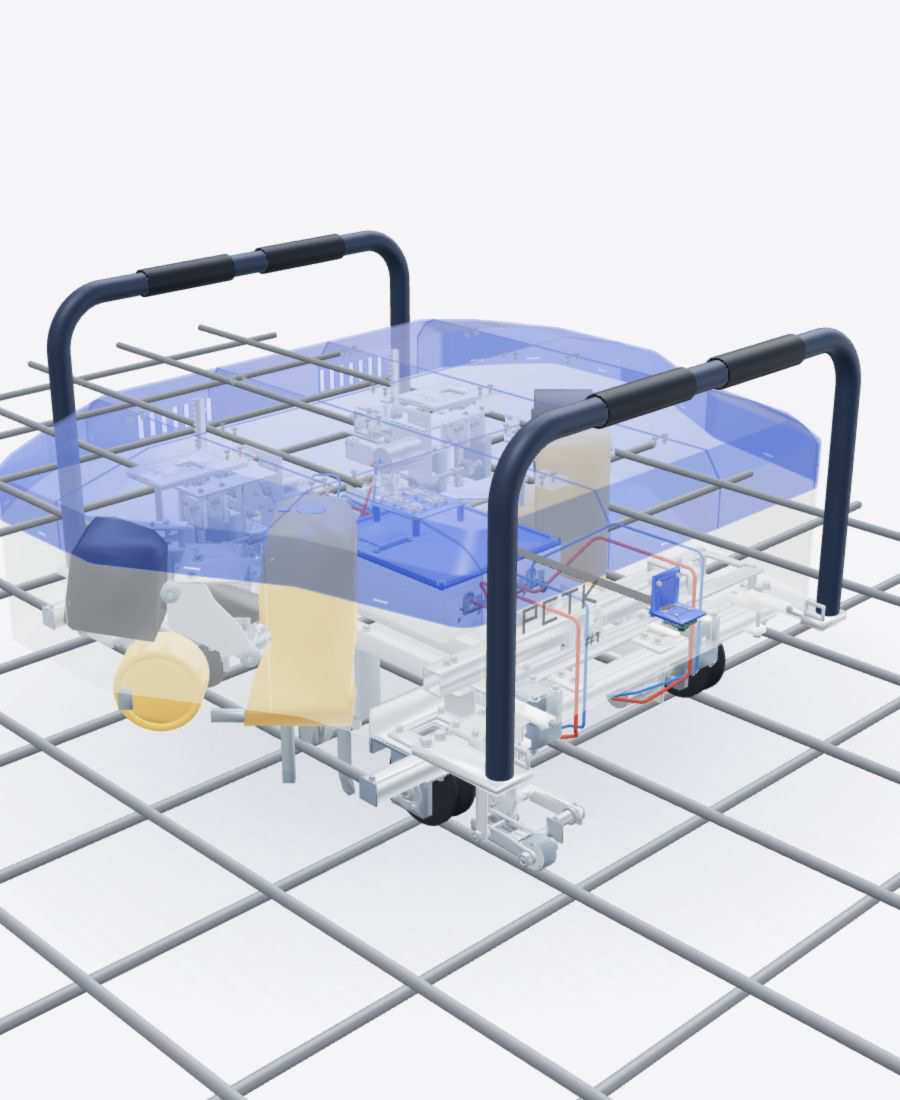

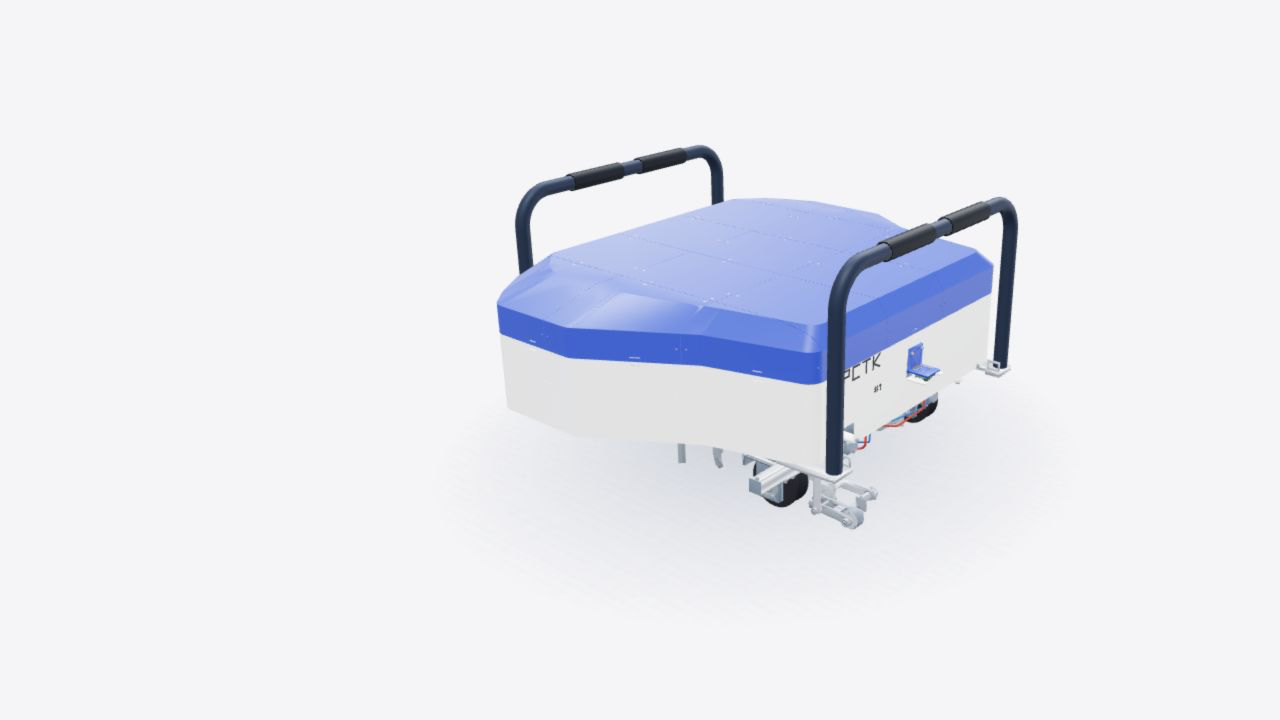

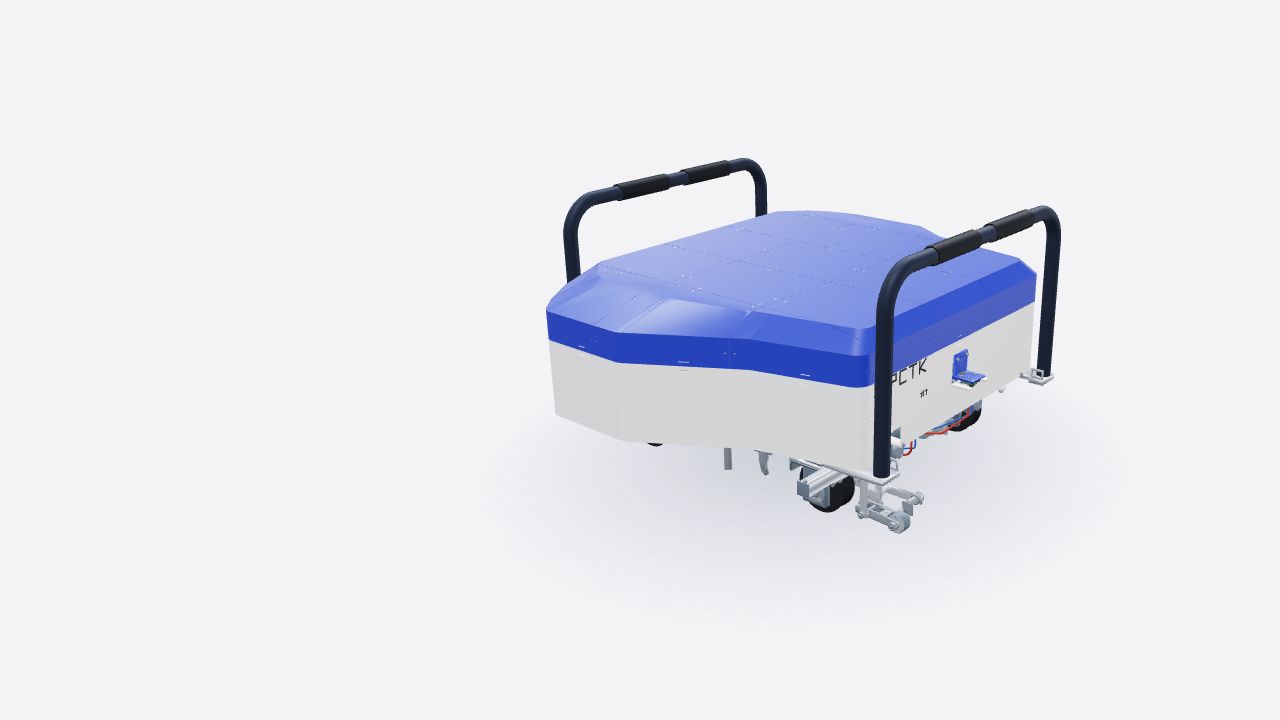

CAD concept · field validation pending
ABU DHABI / UAEEvaluate CTN BOT
Evaluate CTN BOT
for your project.
Send reinforcement drawings, mat spacing, tying volume and labour cost. Our team reviews suitability and agrees pilot criteria. Price and delivery follow a technical review.
Stage: CAD and simulation review. Physical ties have not yet been tested. Site trials follow bench qualification and safety approval.
Validation & development status
08Evidence & boundaries
Evidence.
With its conditions.
Baseline CAD: R25-041. Separate running-gear study: R25-048. Results from different revisions do not qualify one machine.
nominal BRep pairs
No unintended intersections >0.01 mm³ in the reviewed set. Not a strength or full continuous-motion test.
traversals completed
Six upper crossings, approximately 2.04 m. Assumed 30 kg mass in successful nominal cases. 40 kg / 5 N: stalled.
verified physical tests
Actual tie quality, throughput, accuracy, mass, life and safety still require testing.
Simulation conditions & open risks
R25-048: four bounded drives, rigid smooth rebar, imposed masses, friction and resistance. 96/96 isolated returns at 0/5 N are not cement-contamination tests. Gearbox backdrive up to approximately 261 rpm needs OEM review. Stalling persists at 40 kg. Full combined movement, actual currents, heat and strength are unqualified.
Basis: R25-041 and R25-048 verification summaries · 14 Oct 2026. CAD animation shows the layout, not verified autonomy.
10Development roadmap
From design
to measured results.
The next gate is a physical bench. Series readiness and a delivery date have not been declared.
- 01Complete
Design
Detailed R25-041 CAD preserved.
- 02Current
Engineering review
Geometry and conditional simulations. R25-048 running-gear branch.
- 03Next
Prototype & bench
Manufacture, mass, STOP, currents, return and actual ties.
- 04Next
Field validation
Site geometry, output, quality, climate and maintenance.
- 05Next
Pilot & operation
Measured comparison. Refinement and industrial qualification decision.
Calculate project cost in AED
09Project economics · AED
Measure cost per
accepted tie.
Every starting value is an editable assumption. These are not UAE market prices, a quotation or measured CTN BOT performance.
Calculation method
Accepted output = gross output × uptime × acceptance. Robot hours = scope / accepted output + setup. Costs include operator, maintenance, energy, depreciation, consumables for all attempts and mobilisation. Manual labour uses accepted output per person. Break-even exists only if robot variable cost is lower. Add tax, financing and unmodelled risks to other costs. Robot hours are not the calendar duration of a complete crew.
Real-world compatibility
07Real-world compatibility
Site
requirements.
The area is selected from drawings and a site review. A pilot decision follows bench qualification.
Horizontal mats
Prepared support and a continuous route. Vertical reinforcement and arbitrary obstacle avoidance are not claimed.
Ø10 / Ø12 / Ø16
Diameters used in the R25-048 simulation at 200 mm spacing. Simulation conditions, not a certified tying range.
Clearance below the mat
25 mm is a design target. Required clearance must be checked with the exact tying tool, bar diameters and mat deflection before site qualification.
Laps & deflection
Flexible mats, ribbing, protruding wire, edges and combined movements require dedicated tests.
